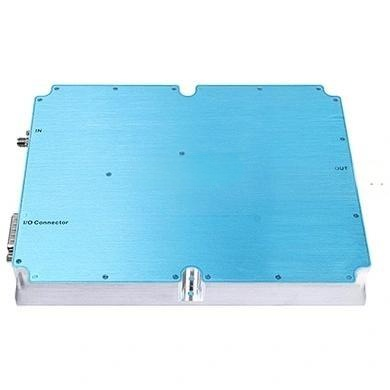

Next-Generation Power: The Wideband Solid State Power Amplifier Advantage
nnIn the rapidly evolving landscape of wireless communication, the need for reliable, high-performance RF amplification has never been greater. Our advanced Wideband Solid State Power Amplifier (SSPA) is engineered to address these complex demands head-on. Operating across a broad spectrum from 2 to 8 GHz, this 50-watt powerhouse leverages cutting-edge GaN (Gallium Nitride) semiconductor technology. This design choice yields superior efficiency, wider operational bandwidth, and higher power density compared to traditional silicon-based or traveling wave tube amplifiers. The term SSPA itself signifies a fundamental leap forward in reliability and performance, effectively eliminating the maintenance and longevity issues associated with older tube-based systems.nnThis module is specifically tailored to excel in demanding applications. In the critical field of EMC Testing, it provides the strong, clean field strength required for both immunity and emissions testing. Its robust design handles a wide variety of signal types—including continuous wave (CW), pulsed, and complex modulated waveforms—making it indispensable for cutting-edge research and development. Whether it’s characterizing new devices for 5G NR, validating the performance of WiFi 6/6E equipment, or ensuring the integrity of military communications systems, this amplifier delivers the wideband power and signal fidelity required to drive innovation. It is more than just an amplifier; it is a foundational component for enabling the next generation of wireless technologies and rigorous EMC Testing protocols.nn
Engineering Excellence Behind the Wideband Solid State Power Amplifier
nnThe core of this amplifier is built on proven GaN technology, which provides exceptional power density and linearity. The design is optimized for minimal distortion and a high dynamic range, ensuring that amplified signals retain their integrity even at high power levels. Key to its versatility is the ability to operate across the full 2-8 GHz band without the need for tuning or band switching, simplifying system integration and reducing test setup times.nn
Critical Applications: From 5G to EMC Testing
nnThe amplifier’s performance is paramount in several key sectors. In EMC Testing, the ability to generate consistent, high-field-strength signals across a wide frequency range is essential for compliance testing. This SSPA ensures that test chambers receive a clean, amplified signal, leading to accurate and repeatable results. Similarly, in 5G NR and WiFi 6/6E research, the amplifier must handle complex modulation schemes without introducing significant distortion. The 50W output power provides the necessary headroom for over-the-air testing, allowing engineers to push devices to their limits. In military and aerospace applications, the unit’s rugged construction and high reliability ensure it performs in demanding field deployments.nn
Comprehensive Protection and Monitoring
nnThe amplifier incorporates a suite of built-in protection features to safeguard both the unit and the device under test. Over-temperature, over-current, and high VSWR protection are standard. A dedicated disable function provides high isolation, allowing for safe system reconfiguration. The monitoring system provides real-time feedback on key parameters, enabling precise power management and diagnostic capabilities.nn
Detailed Technical Specifications
nnThe following table provides a comprehensive overview of the amplifier’s key electrical and physical characteristics. All performance parameters are guaranteed across the full operating temperature range unless otherwise noted.nn
| Parameter | Condition / Notes | Value |
|---|---|---|
| Working Frequency | Full range | 2-8 GHz |
| Saturated Output Power (Psat) | Typical / Minimum @ Pin = 0 dBm | 48.5 / 46.5 dBm |
| Output Power at 1 dB Compression (P1dB) | Typical / Minimum | 41 / 36 dBm |
| Gain | Typical / Minimum @ Pin = 0 dBm | 48.5 / 46.5 dB |
| Gain Flatness | Typical @ Pin = 0 dBm | ±1.5 dB |
| Small Signal Gain | Typical @ Pin = -40 dBm | 60 dB |
| Small Signal Gain Flatness | Typical @ Pin = -40 dBm | ±2.5 dB |
| Isolation (Disable Status) | Typical | 90 dB |
| Input Power (Operating) | Typical | 0 dBm |
| 2nd Harmonic Suppression | Typical / Maximum @ Pout = 46.5 dBm | -25 / -10 dBc |
| 3rd Harmonic Suppression | Typical / Maximum @ Pout = 46.5 dBm | -25 / -15 dBc |
| Spurious Suppression | Typical / Maximum @ Pout = 46.5 dBm | -70 / -65 dBc |
| Input VSWR | Typical / Maximum | 1.5:1 / 2:1 |
| Supply Voltage | Typical | 28 V |
| Power Consumption | Typical / Maximum @ Pin = 0 dBm | 500 W |
| Input Power (Max without damage) | Absolute maximum | ≤ 10 dBm |
| Load VSWR (Operating) | Maximum @ Pout = 46.5 dBm | ≤ 3:1 |
| Protection: Supply Voltage | Amplifier power off | ≥ 32 V or ≤ 24 V |
| Protection: Supply Current | Amplifier power off | ≥ 40 A |
| Protection: Thermal Degradation | Amplifier power off | 75°C |
| RF Input Connector | Type | SMA Female |
| RF Output Connector | Type | N Female |
| Power Supply Connector | Type | D-Sub 7W2 Male |
| Control Connector | Type | D-Sub 7W2 Male |
| Dimensions | Length x Width x Height (Tolerance +0.5 mm) | 160 x 120 x 20 mm |
| Weight | Net weight | 2 kg |
| Surface Treatment | Standard | Natural conductive oxidation |
| Operating Temperature | Ambient | -10°C to +55°C |
| Storage Temperature | Ambient | -40°C to +75°C |
| Heat Dissipation | Required for operation | External air cooling |
| Environmental | Standard rating | N/A |
nn
Conclusion: The Optimal Choice for Wideband Applications
nnIn conclusion, the 2-8 GHz 50W Wideband Solid State Power Amplifier represents a state-of-the-art solution for professionals who demand uncompromising performance, reliability, and versatility. Its GaN-based architecture ensures high efficiency and power density, while its comprehensive protection system and wide bandwidth make it the ideal tool for everything from rigorous EMC Testing to advanced 5G research. By choosing this SSPA, you are not just acquiring an amplifier; you are investing in a critical component that will enable you to meet the challenges of today and the opportunities of tomorrow. For those seeking a wideband solid state power amplifier that delivers on its promises, this unit sets a new standard in its class.
